Display Technology

DLP

Native Resolution

1080p 1920 x 1080

Brightness¹ (Bright Mode)

2200 ANSI Lumens

Contrast

50,000:1

Noise Level (Eco mode)

29dB

Lamp Type

240W

Lamp Life² Dynamic/Eco/Bright

7000/5000/3000 (hrs)

Throw Ratio ³

1.39 - 2.09:1

Zoom Type

1.5x Manual

Projection Lens

F/2.42~2.97; f=20.07~31.05mm, 1.5x Manual Zoom

Projection Screen Size

0.76 - 7.67m (30" - 300") Diagonal 16:9

Projection Distance

1.2 - 10m

Aspect Ratio

16:9 Native, 16:10/4:3 Compatible

Offset

115% ~ 130%

Lens Shift

Vertical: +15% (constraints apply see user manual for details)

Keystone Correction

±30° Vertical

Weight (kg)

3.8

Dimensions (W x D x H) (mm)

286 x 266 x 124

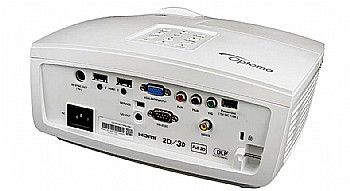

I/O Connectors

2 x HDMI (1.4a 3D support), VGA (RGB/YPbPr), Component, Composite, 3D-Sync, 12V trigger, RS232, USB-A Power, USB service

Maximum Resolution

1080p

Video Compatibility

NTSC M/J, 3.58MHz, 4.43MHz PAL B/D/G/H/I/M/N, 4,43MHz SECAM B/D/G/K/K1/L, 4.25/4.4MHz 480i/p, 576i/p, 720p(50/60Hz), 1080i(50/60Hz), 1080p(50/60Hz)

Displayable Colours

1073.4 Million

3D Support

Full 3D - The 3D features of Optoma projectors can only be used with compatible 3D content. Typical applications include use with 3D educational or 3D design and modelling systems. 3D TV broadcast systems, (SKY in the UK), Blu-ray 3D™ and 3D games from the Sony® PS3 or Microsoft® Xbox 360 are now supported as part of the HDMI v1.4a specification.

3D Compatibility

Side-by-Side:1080i50 / 60, 720p50 / 60
Frame-pack: 1080p24, 720p50 / 60
Over-Under: 1080p24, 720p50 / 60

Power Supply

Input: 110 - 220v

Power Consumption

270W Bright mode / 230W Eco mode (< 0.5W Standby)

Standard Accessories

Lens cap, AC power cord, remote control, 2x AA batteries, quick start card, CD user manual

Optional Accessories

Wireless 3D system, Wireless 3D glasses, DLP® Link™ 3D glasses, wireless, ceiling mount
