PERFORMANCE

Recommended Amplifier Power
(Watts RMS)

25 - 150

Continuous Power Handling
(Watts Peak RMS)

75

Peak Power Handling (Watts)

300

Sensitivity (2.83 Volts @ 1m)

90 dB

Nominal Impedance (Ohms)

8

Frequency Response (-6dB)

38 Hz - 32 kHz

DRIVE UNIT

Dual Concentric™ High Frequency

25 mm (1”) Linear PEI dome with Torus Ogive WaveGuide and Omnimagnet technology

Dual Concentric™ Low Frequency

150 mm (6”) multi-fibre paper 44 mm (1.75”) voice coil

Bass Driver

150 mm (6”) multi-fibre paper pulp cone with rubber surround. 44 mm (1.75”) edge wound voice coil

CROSSOVER

Crossover Frequency

250 Hz & 1.8 kHz

Crossover Type

Passive low loss 2nd order low pass, 1st order high pass

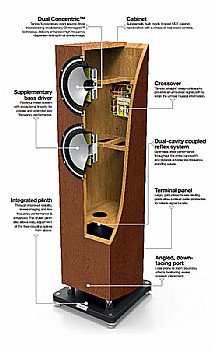

CONSTRUCTION

Enclosure Type

Downwards ported twin cavity coupled reflex

Volume

30.7 l (1.08 cu. ft.)

Dimensions H x W x D
(incl. plinth)

1005 x 269 x 317 mm
(39.6 x 10.6 x 12.5”)

Weight

16.3 kg (35.9 lbs)

Finish

Dark Walnut
Medium Oak
