AMPLIFIER FEATURES

• 140 W/Ch at 4 Ω, 20 Hz–20 kHz, 0.05%, 2 Channels

Driven, IEC

• AWRAT (Advanced Wide Range Amplifier

Technology)

• DIDRC (Dynamic Intermodulation Distortion

Reduction Circuitry)

• Parallel Push-Pull Amplification Design with Three-

Stage Inverted Darlington Circuitry

• 192 kHz/24-Bit HD Audio Playback via Coaxial

Inputs

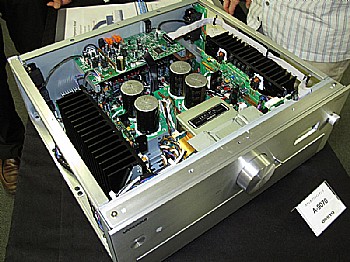

• New Circuit Board Construction with Internal

Struts to Reduce Vibration

• Symmetrical Layout of L/R Channels

• Separate Wolfson® 192 kHz/24-Bit DACs (WM8742

x 2) for L/R Channels

• Four Large 15,000 μF Capacitors

• 1.2 mm-Thick Copper Bus Plate for Perfect

Grounding

• Four Amplifier Modes (Integrated Amp, Power Amp,

Pre-Amp, Split Pre-Amp/Power Amp)

OTHER FEATURES

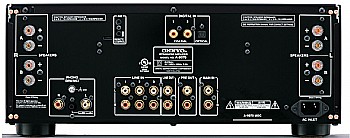

• 3 Digital Audio Inputs (1 Optical and 2 Coaxial)

• 3 Analog Audio Inputs and 1 Output

• Main-In Terminal

• Independent Headphone Amplifier

• Discrete Phono Equalizer (MM/MC)

• Speaker A/B Drive

• Audio L/R Pre-Out

• Customized, Gold-Plated, Banana Plug-Compatible

Speaker Posts

• Machined, Gold-Plated RCA and Phono Terminals

• Auto Standby Function

SPECIFICATIONS

Power Output 140 W/Ch (4 Ω, 20 Hz–20 kHz, 0.05%,

2 channels driven, IEC)

75 W/Ch (8 Ω, 20 Hz–20 kHz, 0.05%,

2 channels driven, IEC)

Dynamic Power 450 W (1 Ω), 310 W (2 Ω), 230 W (3 Ω),

180 W (4 Ω), 100 W (8 Ω)

THD+N (Total Harmonic Distortion + Noise)

0.006% (Half power)

0.03% (1 kHz, 1 W Output)

0.008% (20 Hz–20 kHz, Half power)

0.03% (20 Hz–20 kHz, 1 W Output)

Damping Factor 130 (1 kHz, 8 Ω)

General

Power Supply AC 230 V~, 50 Hz

Power Consumption 290 W

Standby Power Consumption

0.2 W

Dimensions (W x H x D) 435 x 174.5 x 431 mm

Weight 18.1 kg
