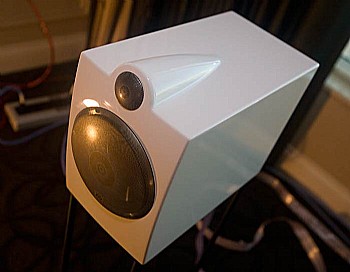

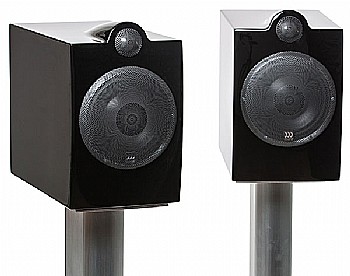

Type

2-way freestanding high-end  loudspeaker

Construction

MDF polymer coated cabinet gloss piano finish

Acoustical Loading

Bass reflex with port located in line No internal damping.

Drive Units

Woofer: 6" (130mm) rear-vented system. Uniflow™ Aluminum die -cast chassis. Ferrite magnet system. 3" Large Hexatech™ aluminum voice coil. Titanium coil bobbin (former), One piece integrated dome and surround cone, made of damped polymer composite (DPC).

Tweeter: 1⅛" (28mm) Acuflex™ soft dome. Powerful Neodymium magnet system.

Both drive units are shielded with low magnetic stray field

Frequency Response

30-22,000Hz (40-18,000Hz ± 1.5 dB)

Crossover

2200 Hz / 12 dB octave

Nominal Impedance

4 ohm

Nominal Power Handling

140W RMS

Peak Power Handling

1,000W 10m/sec

Dispersion

Within 1.5 dB -18,000 HzHorizontal: over 60° / Vertical: over 20°

Sensitivity 1V / 1M

88 dB

Dimension (WxHxD)

   (187mm X 297mm X 340mm (367 with terminals)

Weight

7.3 KG

Finish

Black or white gloss piano finish
